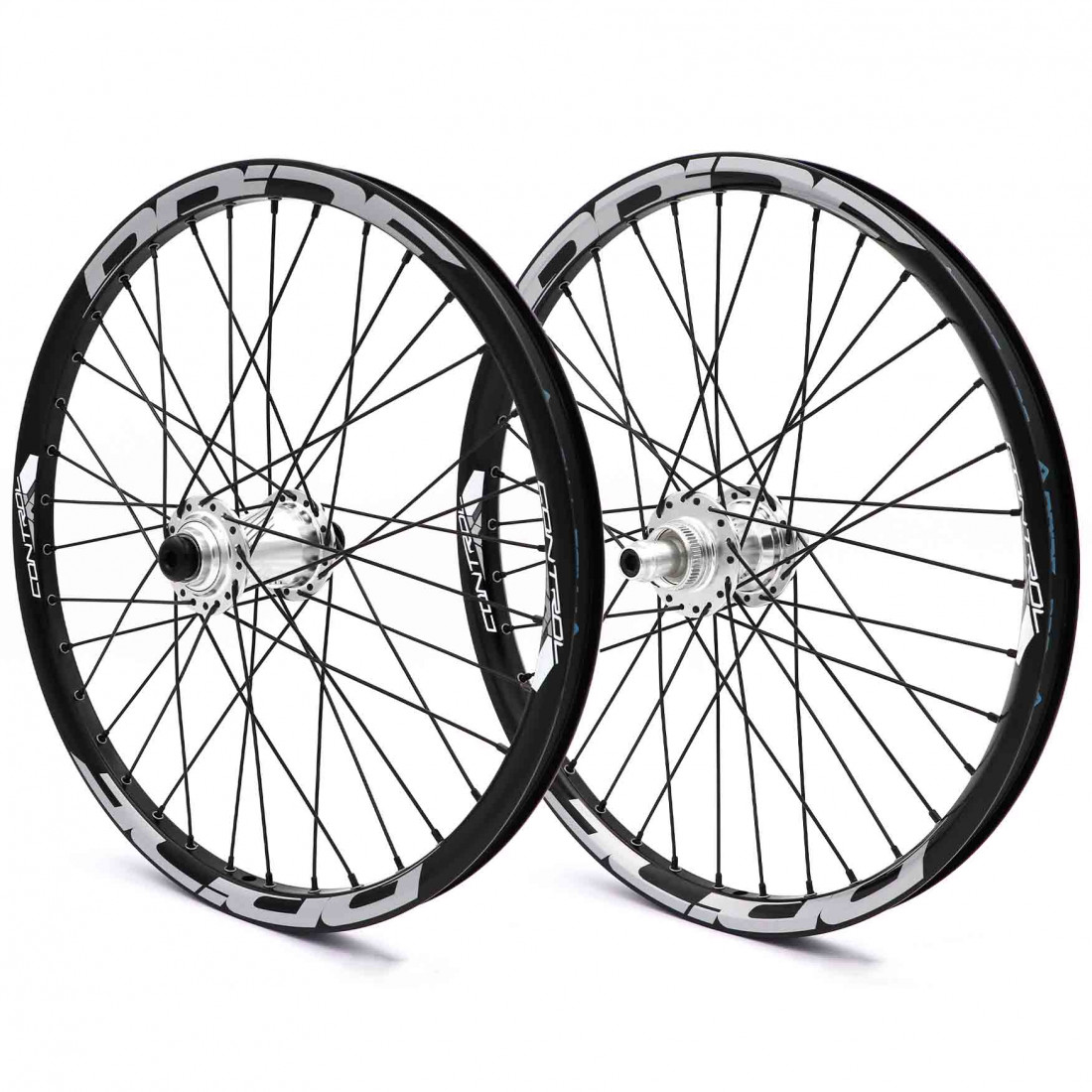

*Non-contractual photo (The centerlock disc mount has been replaced with an ISO6 mount).
PRIDE CONTROL WHEELS
Pride Racing wheels are made from 6061-T6 aluminum and are specifically designed for BMX Racing bikes equipped with 20" (406) wheels. This set includes Pride Racing components, combining Control rims and hubs. Thanks to their T6 heat treatment, these rims offer excellent performance with their lightweight design and efficiency. The Control V2 hubs complement the wheelset, featuring 6 micro-toothed pawls that allow the engagement system to generate 180 points. This wheelset ensures almost instant response, whether you're exiting a turn or starting a race, giving you a solid chance to lead the pack with these Pride Racing Control wheels.
NOTES
- The 20mm front axle is not included.
- The rear wheel comes with a lock ring and spacers to adjust the chainline.
- The rim tapes are not included.
SPECIFICATIONS - RIMS
- Size / ETRTO: 20" / 23-406 (Front) 24-406 (Rear)
- Material : 6061-T6 Aluminum
- Walls : Double
- Spokes : 36
- Height : 19mm
- Width : 27mm (Front) / 28mm (Rear)
- V-Brake Compatibility : No
- Valve Type : Schrader
- Compatible Tire Section : 28-65mm
SPECIFICATIONS - HUBS
- Material : 6061-T6 Aluminum
- Front Spacing : 20x100mm (axle not included)
- Rear Spacing : 10x110mm (female bolts)
- Driver Standard : Shimano
- Engagement Type : 180 points / 6 pawls
- Disc Mount : ISO6
- Front Bearing : 6805
- Rear Bearing : 6902
WEIGHT
- Wheelset : 1730g
- Front wheel : 778g
- Rear wheel : 952g
