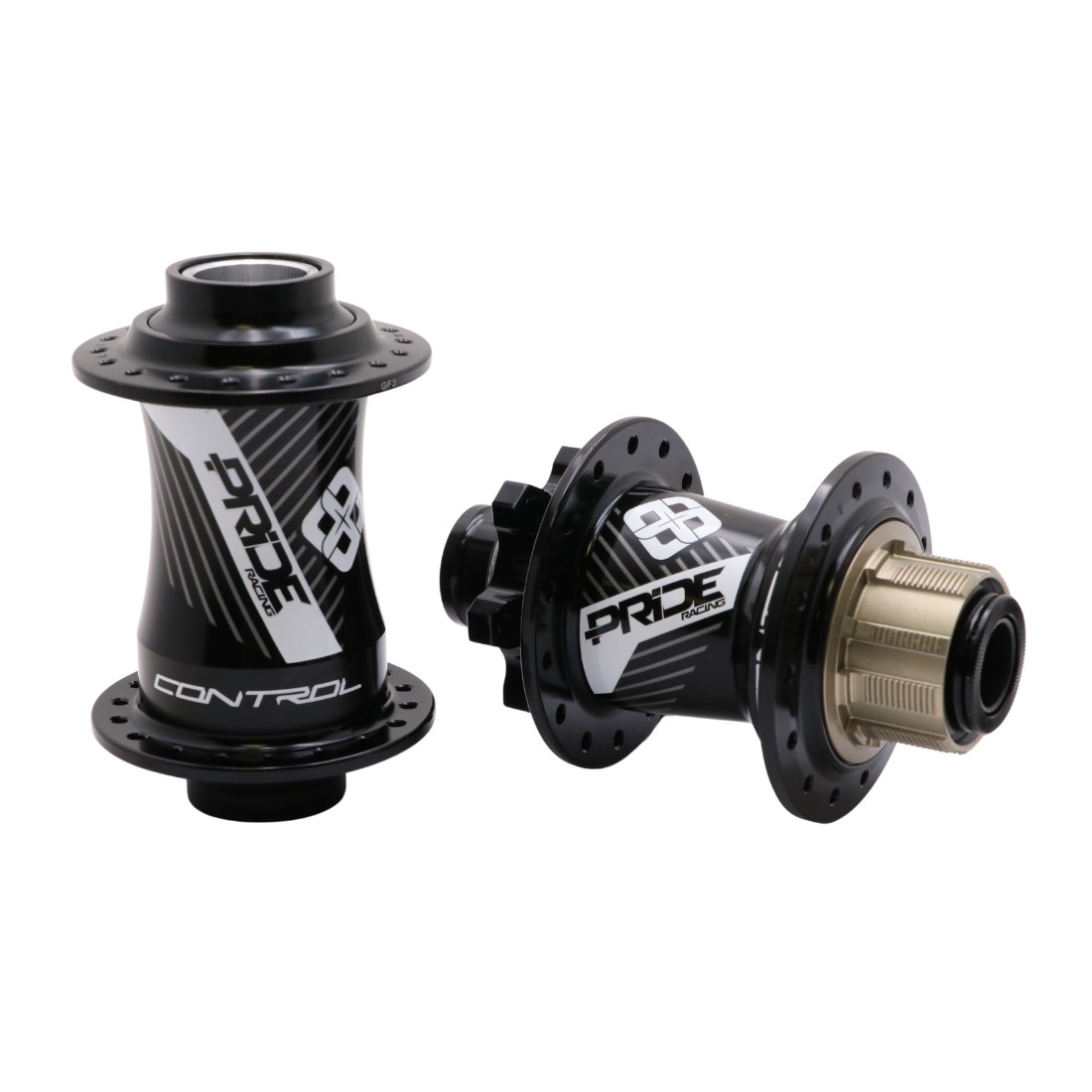

PRIDE CONTROL V2 HUBS
The essential Pride Racing Control hubs are now available in a new version with a 15mm thru-axle rear hub. Additionally, the disc mount has been updated to ISO6 for easier installation and broader compatibility. The hub bodies are still CNC machined from 6061-T6 aluminum for remarkable precision and finish. The engagement system has also been updated, with the 7075 T-6 aluminum driver now incorporating a clip to hold the 6 new slightly wider micro-toothed pawls compared to the Pride Control V1. It retains its 180 points of engagement with pawls engaging 3 at a time.
NOTE: The pair of hubs is delivered with a 20mm front axle, but the 15mm rear axle is not included as it may be specific to the frame model. A spacer kit and lock ring are also provided to perfectly adjust your chain line.
SPECIFICATIONS
- Material : 6061-T6 Aluminum
- Front Hub Spacing : 100x20mm
- Rear Hub Spacing : 110x15mm (Thru-axle not included)
- Number of Holes : 36
- Driver Standard : Shimano
- Engagement Type : 180 points / 6 pawls
- Disc Mount : ISO6
- Front Hub Bearings : Enduro Bearing - 6805LLB (25x37x7mm)
- Rear Hub Bearings : Enduro Bearing - MR18307LLB (18x30x7mm)
- Weight : 246g (Front) / 370g (Rear)
- COLOR
- BLACK
- DRILLING
- 36 H
- AXLE SIZE
- 15mm
20mm - DISC ATTACHMENT
- ISO 6
